Enable port forwarding for the 2Wire 2701HG-G


2Wire 2701HG-G Step 1

1 Open the router management page in a browser

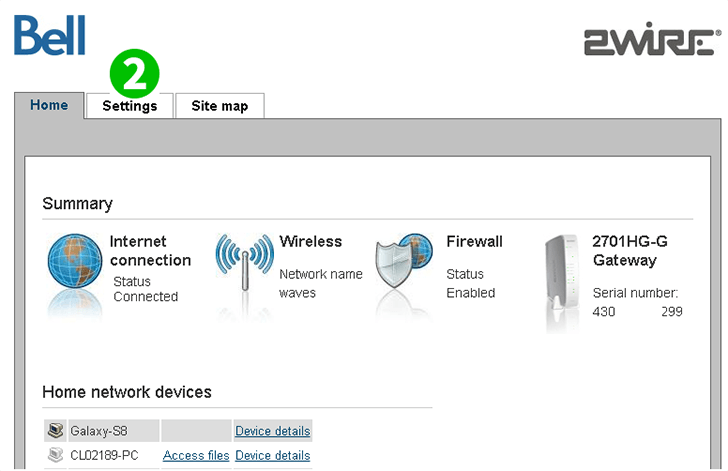

2Wire 2701HG-G Step 2

2 Open the "Settings" tab



2Wire 2701HG-G Steps 3-4

3 Open the "Firewall" tab

4 Open the "Application support" dialog in the Firewall tab

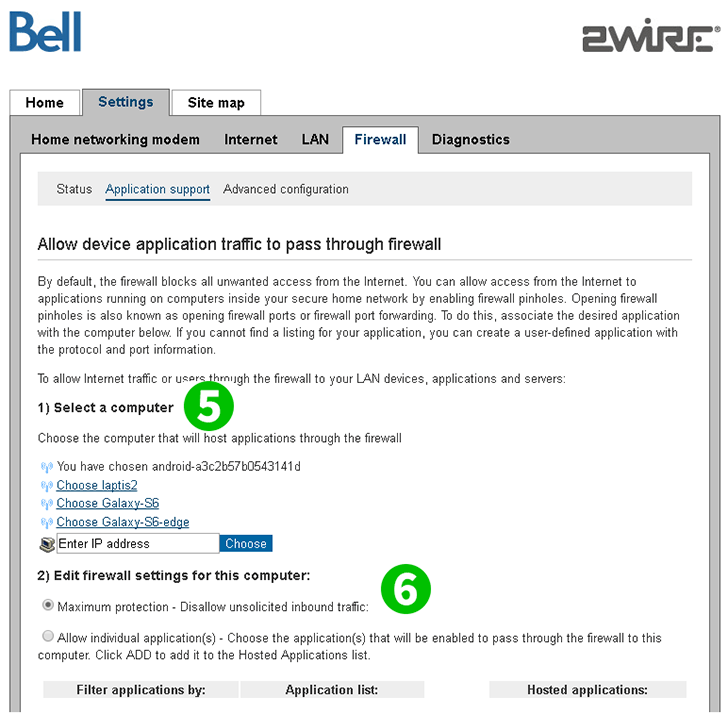

2Wire 2701HG-G Steps 5-6

5 Select the computer cFos Personal Net is running on. Note: The computer must be connected to the router

6 Select the option to allow individual applications

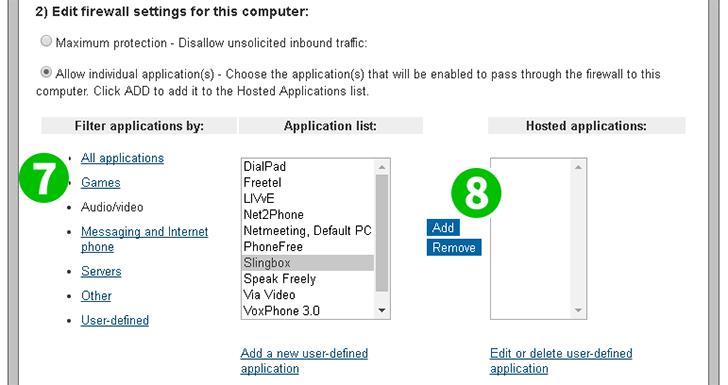

2Wire 2701HG-G Steps 7-8

7 Select the application to use port forwarding for

8 Click on the "Add" button to add port forwarding for the application to the selected computer

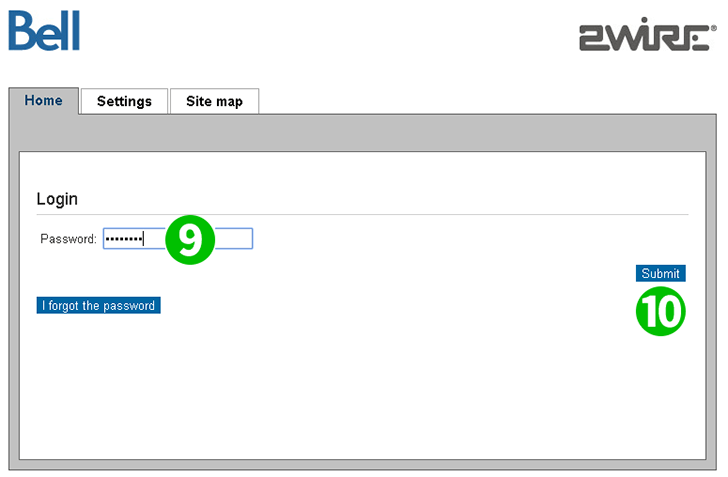

2Wire 2701HG-G Steps 9-10

9 Enter the administrative password

10 Click the "Submit" button to save the setting

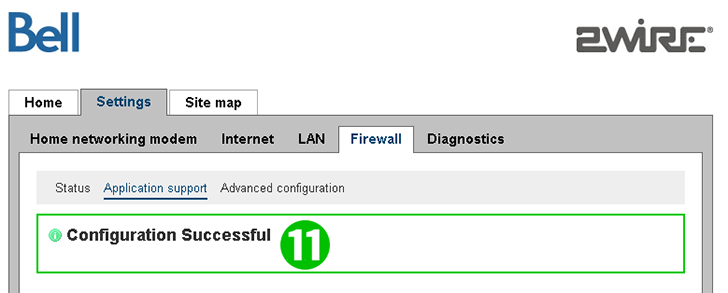

2Wire 2701HG-G Step 11

11 Confirm successful configuration

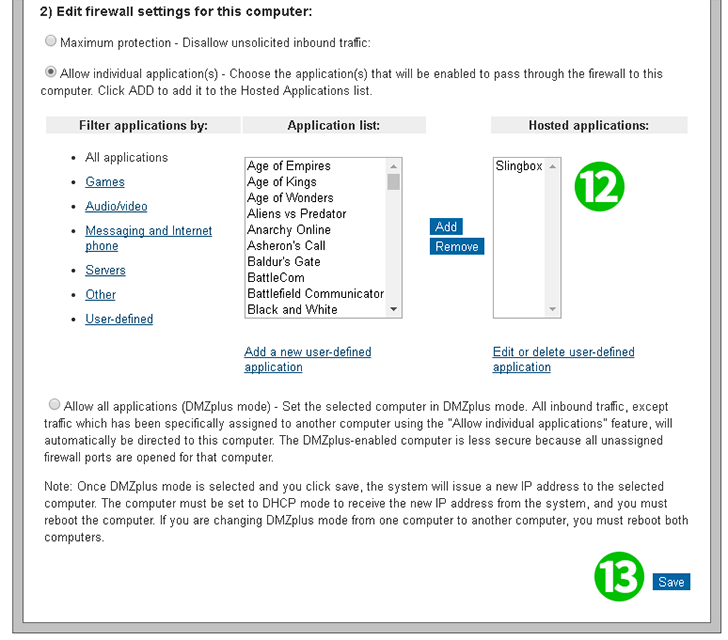

2Wire 2701HG-G Steps 12-13

12 Confirm the application is listed

13 Save the configuration. Port forwarding is now setup



Port forwarding is now configured for your computer!
