Enable port forwarding for the TP-LINK AC750 Archer C20i

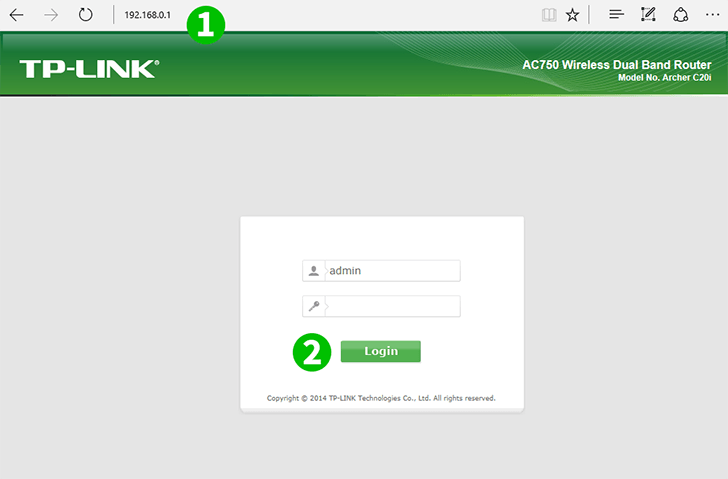

TP-LINK AC750 Archer C20i Steps 1-2

1 Open your internet browser and type http://192.168.0.1/ in address bar to open router management panel

2 Log in with your credentials (deafult user name and password is admin)

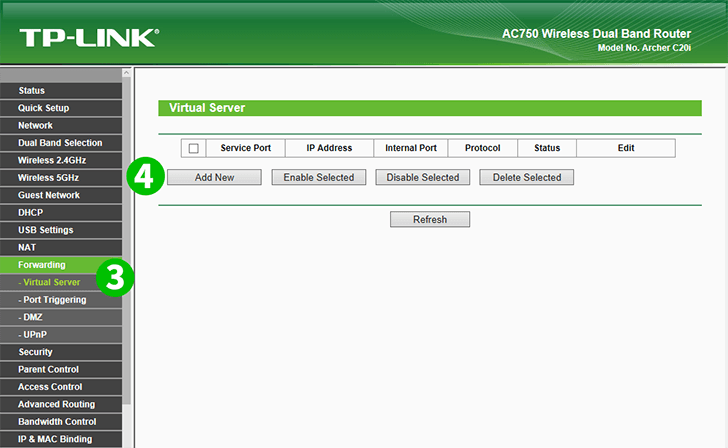

TP-LINK AC750 Archer C20i Steps 3-4

3 Click on the "Forwarding" in the menu on the left side and choose "Virtual Server"

4 Click on the "Add new" button

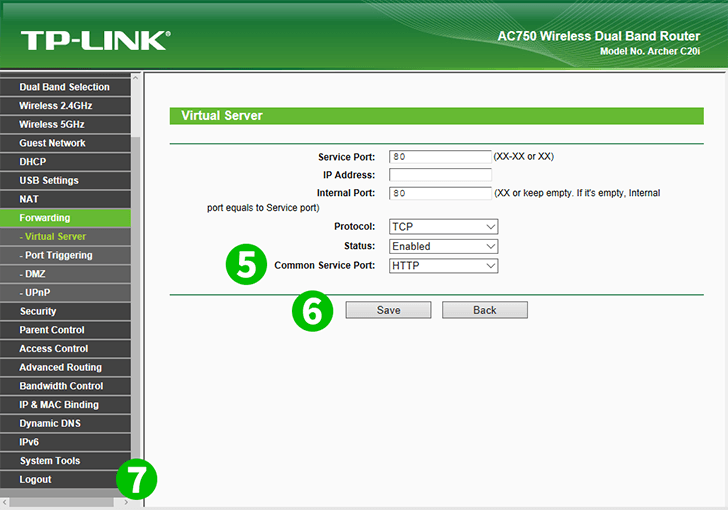

TP-LINK AC750 Archer C20i Steps 5-7

5 Select "HTTP" as "Common Service port" and enter the IP of the computer running cFos Personal Net in the "IP Address" field

6 Click on the "Save" button

7 Log out of the management panel



Port forwarding is now configured for your computer!
